Hurst/VPIN Directional Strategy (Kraken Futures)Copy Anchor Link

This tutorial backtests a directional strategy on PF_XBTUSD, the USD-margined Bitcoin perpetual on Kraken Futures. The strategy combines a Hurst-exponent regime filter with a VPIN (Volume-synchronized Probability of Informed Trading) flow signal. The Rust BacktestEngine replays historical trades and quotes from Tardis.dev.

IntroductionCopy Anchor Link

The strategy combines a slow regime filter from bars and a fast informed-flow signal from trades. Quote-driven entry occurs only when both signals agree.

• Hurst exponent: Sampled on constant-notional (value) bars, following Lopez de Prado (Advances in Financial Machine Learning, Chapter 2). A rescaled-range (R/S) estimate greater than 0.55 indicates persistent, trending behavior. An estimate less than 0.50 indicates mean reversion or noise.

• VPIN: Each completed dollar bar is one volume bucket. VPIN is the average absolute imbalance between aggressive buy and aggressive sell volume over the last fifty buckets. The signed imbalance gives the net informed direction.

• Quote-driven entry: Once both signals agree, the strategy opens a position on the next quote tick. Entry timing stays tied to the live top of book rather than to bar closes.

The strategy closes the position when the Hurst estimate decreases through a lower threshold or the holding-time cap is reached.

The strategy is shipped as HurstVpinDirectional in the nautilus_trading::examples::strategies module. As with all shipped example strategies, it is intentionally simple and has no alpha advantage.

Why Kraken FuturesCopy Anchor Link

Kraken Futures lists perpetuals on Bitcoin and Ether in two forms:

• PI_ inverse perpetuals: quoted in USD, margined and settled in the underlying.
• PF_ linear perpetuals: quoted in USD, margined and settled in USD (through multi-collateral).

The tutorial uses PF_XBTUSD so the account currency, quote currency, and dollar-bar sampling frame are all USD.

Why dollar bars and VPIN togetherCopy Anchor Link

VPIN is defined on volume buckets rather than time buckets. Dollar bars (VALUE aggregation in NautilusTrader) close after a fixed notional has traded, so the sampling frame adapts to market activity. Each VPIN bucket is one dollar bar, and Hurst uses the same bars. Thus, both signals use the same clock and sampling frame.

PrerequisitesCopy Anchor Link

• A working Rust toolchain (see rustup.rs).
• The NautilusTrader repository cloned and building.
• Internet access to download a free Tardis sample (no API key required for the first day of each month).

Data preparationCopy Anchor Link

Kraken Futures is published by Tardis under the historical slug cryptofacilities. The first day of each month is free without an API key. This sample is sufficient for a single-day setup check. A full backtest needs at least two sessions to fill the 128-bar Hurst window. Those historical ranges require a paid Tardis API key (see the tip below).

mkdir -p /tmp/tardis_kraken

curl -L -o /tmp/tardis_kraken/PF_XBTUSD_trades.csv.gz \
  https://datasets.tardis.dev/v1/cryptofacilities/trades/2024/01/01/PF_XBTUSD.csv.gz

curl -L -o /tmp/tardis_kraken/PF_XBTUSD_quotes.csv.gz \
  https://datasets.tardis.dev/v1/cryptofacilities/quotes/2024/01/01/PF_XBTUSD.csv.gz

The runnable example binary reads from /tmp/tardis_kraken/ by default. If you download into that directory, cargo run works without changes to the example's path constants.

The Rust Tardis loader parses .csv.gz directly and assigns the supplied instrument ID to each record. The strategy therefore needs no symbology mapping:

use nautilus_model::identifiers::InstrumentId;
use nautilus_tardis::csv::load::{load_quotes, load_trades};

let instrument_id = InstrumentId::from("PF_XBTUSD.KRAKEN");
let trades = load_trades(
    "/tmp/tardis_kraken/PF_XBTUSD_trades.csv.gz",
    Some(1),               // price_precision
    Some(4),               // size_precision
    Some(instrument_id),
    None,                  // limit
)?;
let quotes = load_quotes(
    "/tmp/tardis_kraken/PF_XBTUSD_quotes.csv.gz",
    Some(1),
    Some(4),
    Some(instrument_id),
    None,
)?;

Pass the instrument's price_precision and size_precision explicitly. The loader otherwise infers precision from the first few records. For a sample day without fractional prices, it can infer 0. The matching engine rejects a quote tick whose precision does not match the instrument's declared precision.

Instrument definitionCopy Anchor Link

This tutorial loads CSV data directly, without the live Kraken adapter. It therefore defines PF_XBTUSD manually as a CryptoPerpetual. Linear perpetuals on Kraken Futures are quoted and margined in USD:

use nautilus_model::{
    identifiers::{InstrumentId, Symbol},
    instruments::CryptoPerpetual,
    types::{Currency, Price, Quantity},
};
use rust_decimal_macros::dec;

let instrument = CryptoPerpetual::builder()
    .instrument_id(InstrumentId::from("PF_XBTUSD.KRAKEN"))
    .raw_symbol(Symbol::from("PF_XBTUSD"))
    .base_currency(Currency::BTC())       // base
    .quote_currency(Currency::USD())      // quote
    .settlement_currency(Currency::USD()) // settlement (linear)
    .is_inverse(false)
    .price_precision(1)
    .size_precision(4)
    .price_increment(Price::from("0.5"))
    .size_increment(Quantity::from("0.0001"))
    .margin_init(dec!(0.02))
    .margin_maint(dec!(0.01))
    .ts_event(0.into())
    .ts_init(0.into())
    .build()
    .unwrap();

Margin and fee rates are explicit backtest assumptions. This example uses a maker/taker fee model with 0.02% maker and 0.05% taker rates. Check the Kraken Futures fee schedule for current rates.

Dollar-bar samplingCopy Anchor Link

NautilusTrader ships all the information-driven bar aggregators from AFML Chapter 2: tick, volume, value (dollar), plus imbalance and runs variants for each. This tutorial uses plain VALUE bars, which close after a fixed notional has traded on the tape.

The bar type is expressed as a string. The INTERNAL suffix tells the engine to aggregate inside NautilusTrader from the underlying trade stream (price type LAST):

use nautilus_model::data::BarType;

let bar_type = BarType::from("PF_XBTUSD.KRAKEN-2000000-VALUE-LAST-INTERNAL");

Each bar closes after USD 2,000,000 of traded notional. A session typically produces fewer than 150 bars and can fall short of the 128-bar Hurst window. Thus, the default configuration needs multiple sessions for warmup. For a single-day run, reduce the bar size to USD 500,000 or reduce hurst_window and vpin_window accordingly. For full multi-day backtests, use the defaults.

Strategy overviewCopy Anchor Link

The HurstVpinDirectional strategy runs three concurrent pipelines that synchronize at bar close:

• Trades feed a bucket accumulator.
• Bar close triggers new signal calculations.
• Quotes drive entry and timeout checks.

• Per trade: The strategy accumulates aggressive buy and aggressive sell volume for the current dollar-bar bucket through TradeTick::aggressor_side.
• Per bar (bucket close): The strategy appends the bar's log return to the Hurst window. It calculates the bucket's signed and absolute imbalance, then resets the accumulators. It estimates rolling Hurst and VPIN again, clears exit_cooldown, and checks regime exit.
• Per quote: The Hurst and VPIN signals must agree before a flat strategy can open a market IOC order. Hurst must meet hurst_enter, VPIN must meet vpin_threshold, and signed imbalance must be nonzero. If a position is already open, it checks the holding-time cap.

Regime exit occurs in the bar pipeline when Hurst decreases to less than hurst_exit. Holding timeout occurs in the quote pipeline when the position has been open longer than max_holding_secs.

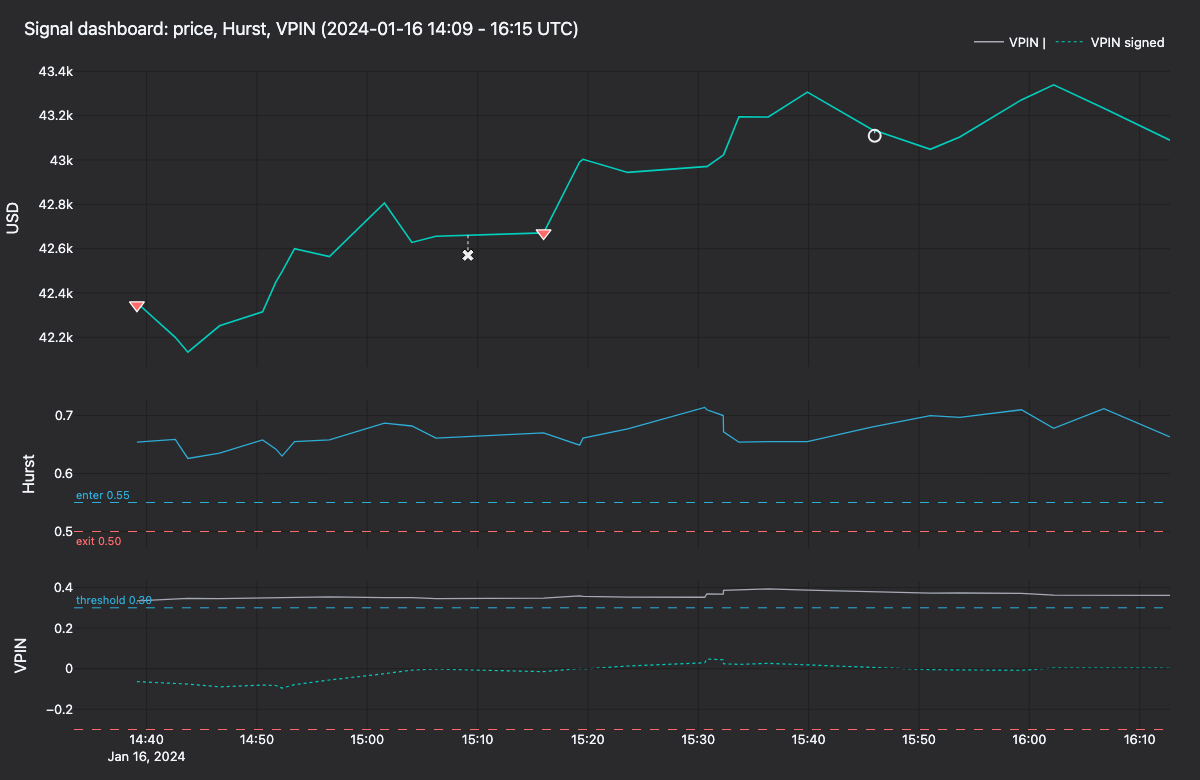

Figure 1. Signal dashboard for 2024-01-16 14:09-16

Hurst estimatorCopy Anchor Link

The strategy uses classical rescaled-range (R/S) regression. For each lag k in (4, 8, 16, 32), it divides the return window into non-overlapping chunks of length k. It calculates each chunk's rescaled range and records the mean R/S. The slope of log(R/S) against log(k) across the lag set gives the Hurst estimate.

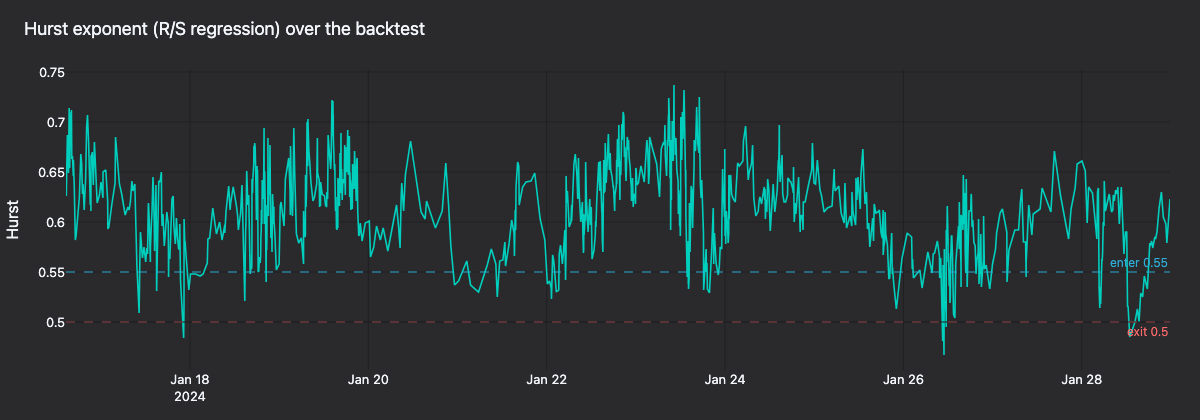

Figure 2. Rolling Hurst across 14 days of PF_XBTUSD (2024-01-15 to 2024-01-28) with enter 0.55 and exit 0.50 thresholds.

VPIN estimatorCopy Anchor Link

With explicit trade aggressor side available from the venue feed, VPIN collapses to

VPIN = mean_k ( |V_B_k - V_S_k| / (V_B_k + V_S_k) )

over the last k completed dollar-bar buckets. The signed variant retains the sign of V_B - V_S and is used to choose direction. This is more accurate than the bulk-volume classification in the original Easley/Lopez de Prado formulation. That classification was only necessary when aggressor side was not directly observable.

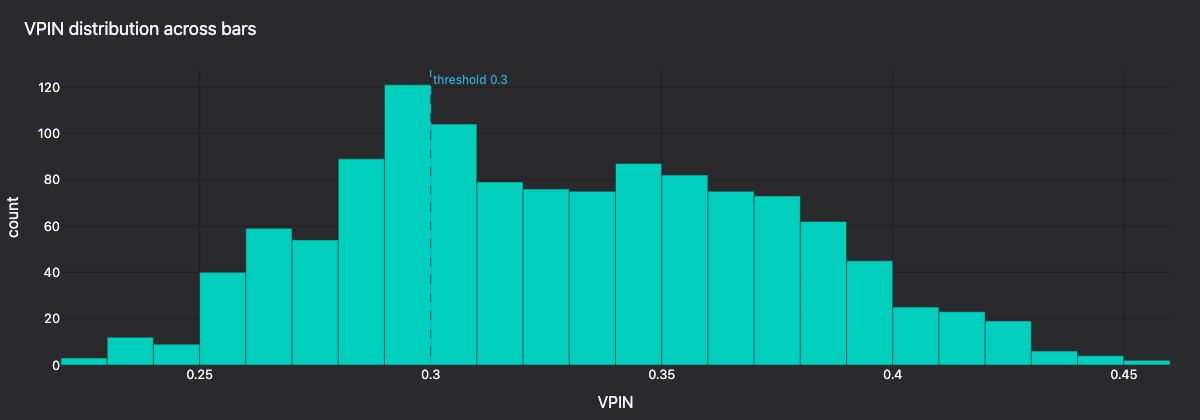

Figure 3. VPIN distribution across all bars with the 0.30 entry threshold.

ConfigurationCopy Anchor Link

Set hurst_window and vpin_window to values in [1, 16_384].

Backtest setupCopy Anchor Link

Configure a BacktestEngine with a Kraken venue and a USD starting balance:

use nautilus_backtest::{
    config::{BacktestEngineConfig, SimulatedVenueConfig},
    engine::BacktestEngine,
};
use nautilus_execution::models::fee::{FeeModelAny, MakerTakerFeeModel};
use nautilus_model::{
    data::Data,
    enums::{AccountType, BookType, OmsType},
    identifiers::Venue,
    instruments::{Instrument, InstrumentAny},
    types::Money,
};

let mut engine = BacktestEngine::new(BacktestEngineConfig::default())?;

engine.add_venue(
    SimulatedVenueConfig::builder()
        .venue(Venue::from("KRAKEN"))
        .oms_type(OmsType::Netting)
        .account_type(AccountType::Margin)
        .book_type(BookType::L1_MBP)
        .starting_balances(vec![Money::from("100_000 USD")])
        .fee_model(
            FeeModelAny::MakerTaker(MakerTakerFeeModel::new(dec!(0.0002), dec!(0.0005))).into(),
        )
        .build()?,
)?;

engine.add_instrument(&InstrumentAny::CryptoPerpetual(instrument))?;

Feed the loaded trades and quotes as Data enum variants:

let mut data: Vec<Data> = trades.into_iter().map(Data::Trade).collect();
data.extend(quotes.into_iter().map(Data::Quote));
engine.add_data(data, None, true, true)?;

Add the strategyCopy Anchor Link

use nautilus_model::types::Quantity;
use nautilus_trading::examples::strategies::{
    HurstVpinDirectional, HurstVpinDirectionalConfig,
};

let config = HurstVpinDirectionalConfig::builder()
    .instrument_id(instrument_id)
    .bar_type(bar_type)
    .trade_size(Quantity::from("0.0100")) // match instrument size_precision
    .max_holding_secs(1800)
    .build();

engine.add_strategy(HurstVpinDirectional::new(config))?;

Run the backtestCopy Anchor Link

engine.run(None, None, None, false)?;

With the default 128/50 windows and USD 2,000,000 bars, a single-day sample stays in warmup for the whole run. The engine aggregates dollar bars and drives the strategy on individual trades and quotes. Hurst and VPIN do not emit until the windows are full. For signal updates and entries or exits on a single day, reduce the bar size or windows as described above. Alternatively, provide two or more sessions of data.

A 14-day run (2024-01-15 to 2024-01-28) on this configuration prints 1,224 bars and produces only 2 entries, 1 partial cover, and 1 close. Entries are sparse by design: Hurst and VPIN must meet their respective thresholds on the same quote. The remaining size after the partial IOC cover stays open through the rest of the session. A Netting OMS leaves this residual position when an exit IOC only fills part of the position.

The wiring above is shipped as a runnable binary:

cargo run -p nautilus-kraken --features examples \
  --example kraken-hurst-vpin-backtest --release

By default it reads PF_XBTUSD_trades.csv.gz and PF_XBTUSD_quotes.csv.gz from /tmp/tardis_kraken/. To read other files, edit the TRADES_PATH and QUOTES_PATH constants in crates/adapters/kraken/examples/engine_hurst_vpin_backtest.rs.

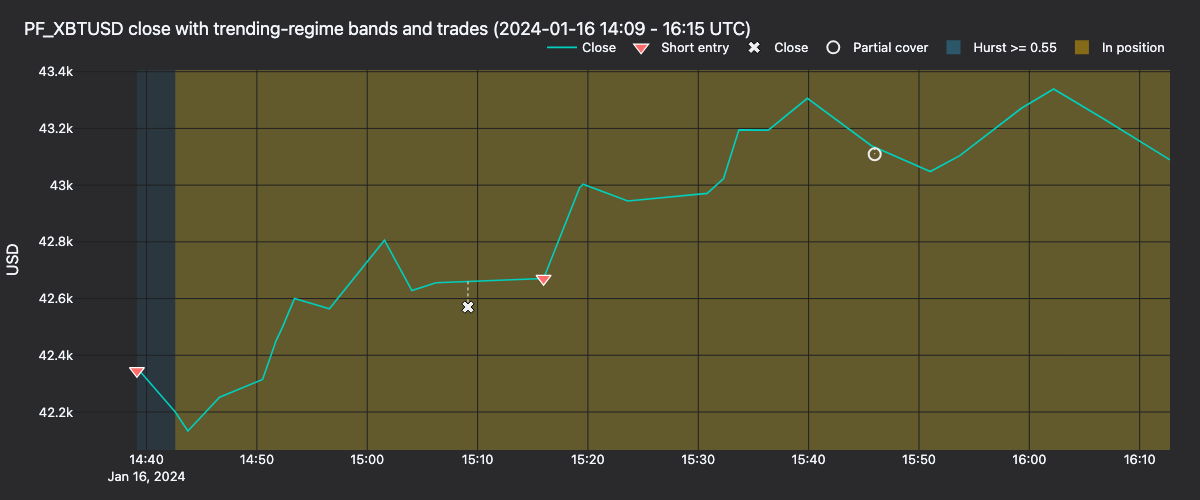

Figure 4. Close price for 2024-01-16 14:09-16

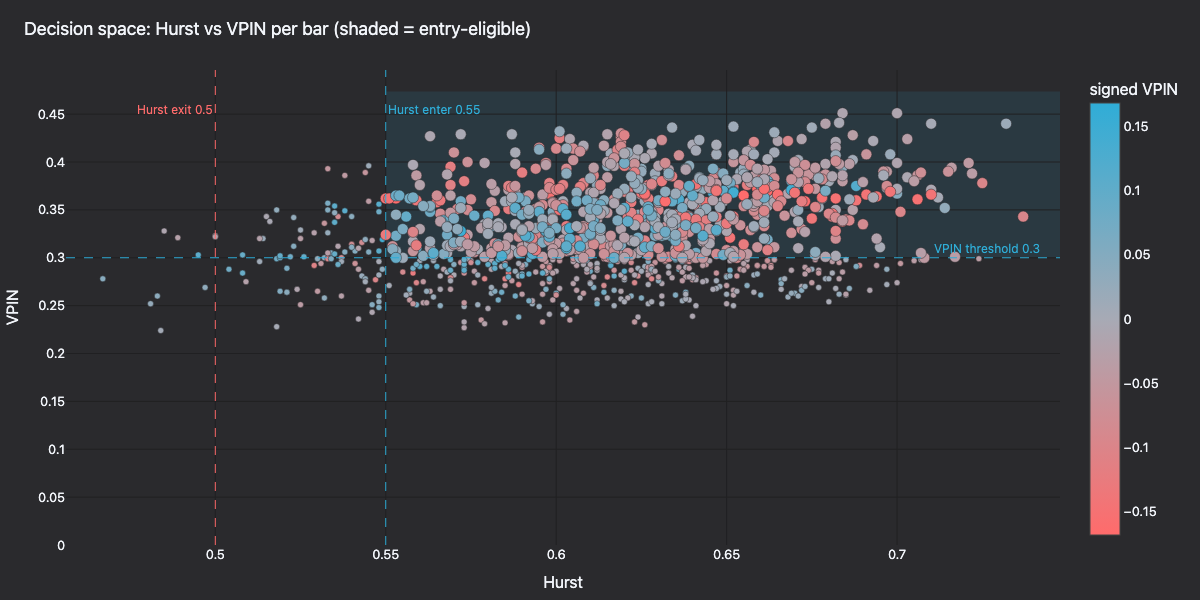

Figure 5. Per-bar Hurst vs. VPIN across the backtest, colored by signed VPIN. Shaded quadrant marks the entry-eligible region.

Regenerate the panelsCopy Anchor Link

The backtest strategy logs Hurst=… VPIN=… signed=… bar_close=… on every bar close. It also logs standard OrderFilled events on entries and exits. These logs make the panels above fully reproducible from the run's stdout.

After building NautilusTrader from source, run these commands from the repository root:

make sync

RUST_LOG=info cargo run -p nautilus-kraken --features examples \
    --example kraken-hurst-vpin-backtest --release > /tmp/backtest.log 2>&1

BACKTEST_LOG=/tmp/backtest.log \
    uv run --project python --no-sync \
        python docs/tutorials/assets/hurst_vpin_kraken/render_panels.py

The renderer uses the shared nautilus_dark tearsheet theme and writes static PNGs through Plotly's Kaleido exporter.

Next stepsCopy Anchor Link

• Sampling frame: Try larger or smaller dollar-bar thresholds. The VALUE_IMBALANCE and VALUE_RUNS aggregators produce bars that close on information arrival. These are alternatives to constant-dollar sampling.
• Thresholds: hurst_enter, hurst_exit, and vpin_threshold all interact: a higher enter threshold makes signals rarer but more specific. A tighter exit shortens average holding time.
• Volatility gate: Add a realized-volatility estimator on the same bars to suppress entries during clearly chaotic sessions.
• Live trading: Once the backtest behaves, drive the same strategy through the Kraken live client factories. A runnable live wiring ships as kraken-hurst-vpin-live.

The example trades Kraken Futures production with real funds by default: both clients use the default KrakenEnvironment::Live, and it reads KRAKEN_FUTURES_API_KEY and KRAKEN_FUTURES_API_SECRET. To paper trade on demo-futures.kraken.com instead, first edit crates/adapters/kraken/examples/node_hurst_vpin_live.rs:

1. Pass true as the demo argument to KrakenCredential::resolve_futures.
2. Set environment: KrakenEnvironment::Demo (from nautilus_kraken::common::enums) on both KrakenDataClientConfig and KrakenExecutionClientConfig.

The example then reads KRAKEN_FUTURES_DEMO_API_KEY and KRAKEN_FUTURES_DEMO_API_SECRET.

cargo run -p nautilus-kraken --features examples \
  --example kraken-hurst-vpin-live

Further readingCopy Anchor Link

• HurstVpinDirectional strategy source
• Data concepts: bar types and aggregation
• Tardis integration guide
• Kraken integration guide
• Kraken Futures documentation
• Lopez de Prado, M. (2018). Advances in Financial Machine Learning, Wiley. Chapter 2 (information-driven bars) and Chapter 19 (VPIN).
